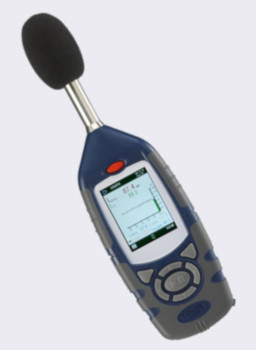

CEL620 Integrating Sound Level Meter

CEL620 Occupational (Basic) CEL630 Occupational CEL632 Occupational (Advanced) CEL621 Environmental (Basic) CEL631 Environmental CEL633 Environmental (Advanced)

Class 1 or Class 2 Sound Level Meter?

A Class 1 sound level meter is a little more accurate than a Class 2 model. It is also more expensive. If you are using the meter exclusively for noise at work assessments then the EU regulations and HSE guidelines are quite clear: Class 2 is adequate. For this reason we recommend the Class 2 model.

However, if you need to make other noise measurements, such as noise emitting from your factory into the local environment, then it might be wise to go for a Class 1 meter. See the Applications page for more notes on environmental noise measurement.

---

Sound Level Meter Configuration

Octave Bands	With this option fitted, the meter splits the spectrum into 11 bands to provide information about the frequency content. The option is very useful when monitoring areas with very high noise levels. The octave band measurements are used by the software to calculate the level at the ear when wearing different hearing protectors.
1/3 Octave Bands	In this case the spectrum is split into 33 bands, giving a more detailed frequency analysis. Very useful for specialist applications and to get a more detailed picture of the frequency content of machinery noise.

---

Insight Software

The CEL620 is a data logging meter that does not require any additional software - when plugged into a computer it acts like a memory card. You can manually copy the data to your computer or load it into a spreadsheet program. However, the Insight software makes this process more convenient, links the measurements to person, place or process, and presents the results.

---

Order Codes

Sound Level Meter	CEL620A1 - Class 1 Integrating Sound Level Meter	€1795,00
	CEL620A2 - Class 2 Integrating Sound Level Meter	€1241,00
	CEL620B1 - Class 1 Integrating Sound Level Meter with Octave Band Filters	€2280,00
	CEL620B2 - Class 2 Integrating Sound Level Meter with Octave Band Filters	€1725,00
	CEL620C1 - Class 1 Integrating Sound Level Meter with 1/3 Octave Band Filters	€2765,00
	CEL620C2 - Class 2 Integrating Sound Level Meter with 1/3 Octave Band Filters	€2211,00
Calibrator	The Calibrator is available as Type 1 or Type 2, usually to match the class of the meter:
	CEL120/1 Type 1 Sound Level Calibrator	€647,00
	CEL120/2 Type 2 Sound Level Calibrator	€317,00
Software	ISC004 Insight Software	€389,00
Accessories	CEL6840 Carrying Case for CEL620 Sound Level Meter, Calibrator and accessories	€92,00
